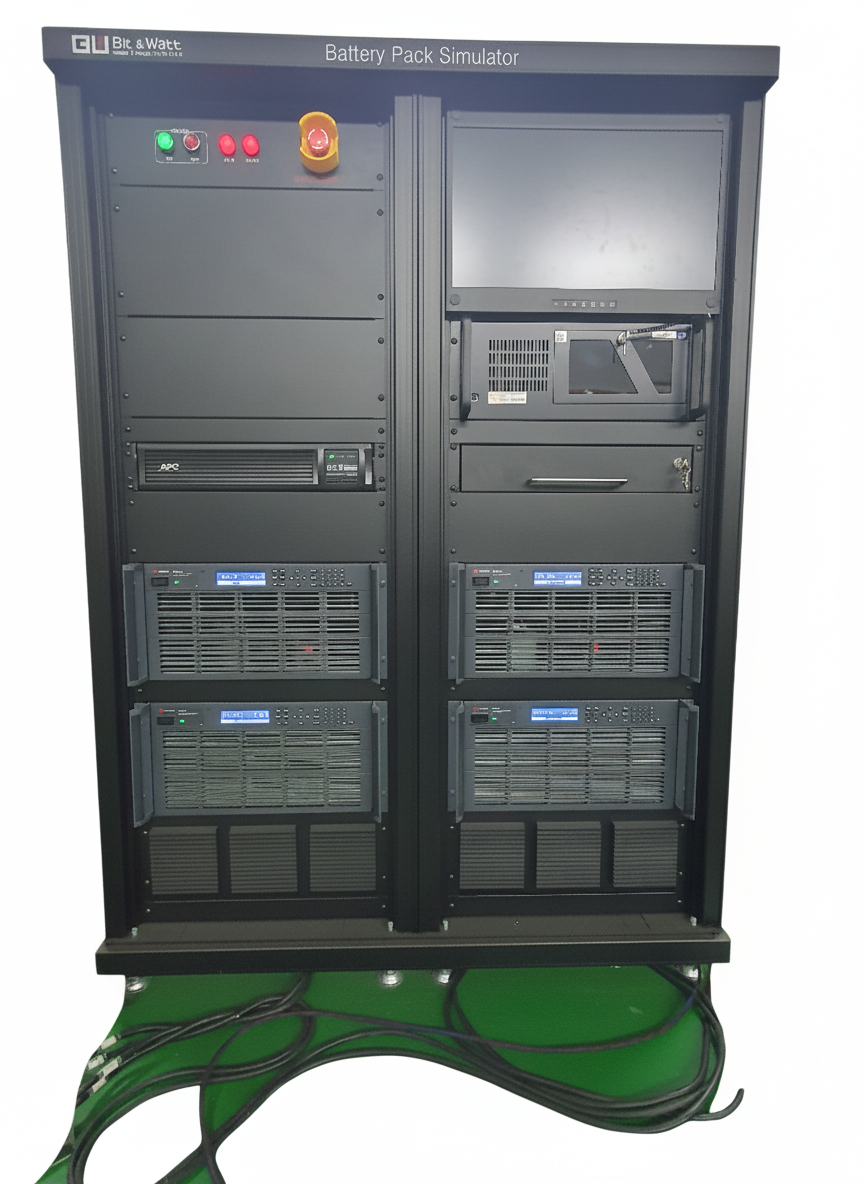

BPS-1000V120A2CH

Channel	2Ch
Number of Unit	1 Unit
Unit Capacity	60kW
System Capacity	120kW
Operation Mode	CC/CV/CP/Pattern/Pulse
Voltage Source	5 to 1000V
Current source and sink	0 to +- 120 A
Power	0 to +- 60 kW
Voltage Resolution	50mm
Current Resolution	12mA
Over Voltage Protection	1020V(30us)
Operating Enviroment	Tempperature :0~55C / Humidity"90% or less

Temperature measurement

Sensor Type	K-type Thermocouple Wire
Read Range	-50 C ~ 200 C
Read Accuracy	1 C
Channel	8Ch
Data Storage Time	-100ms

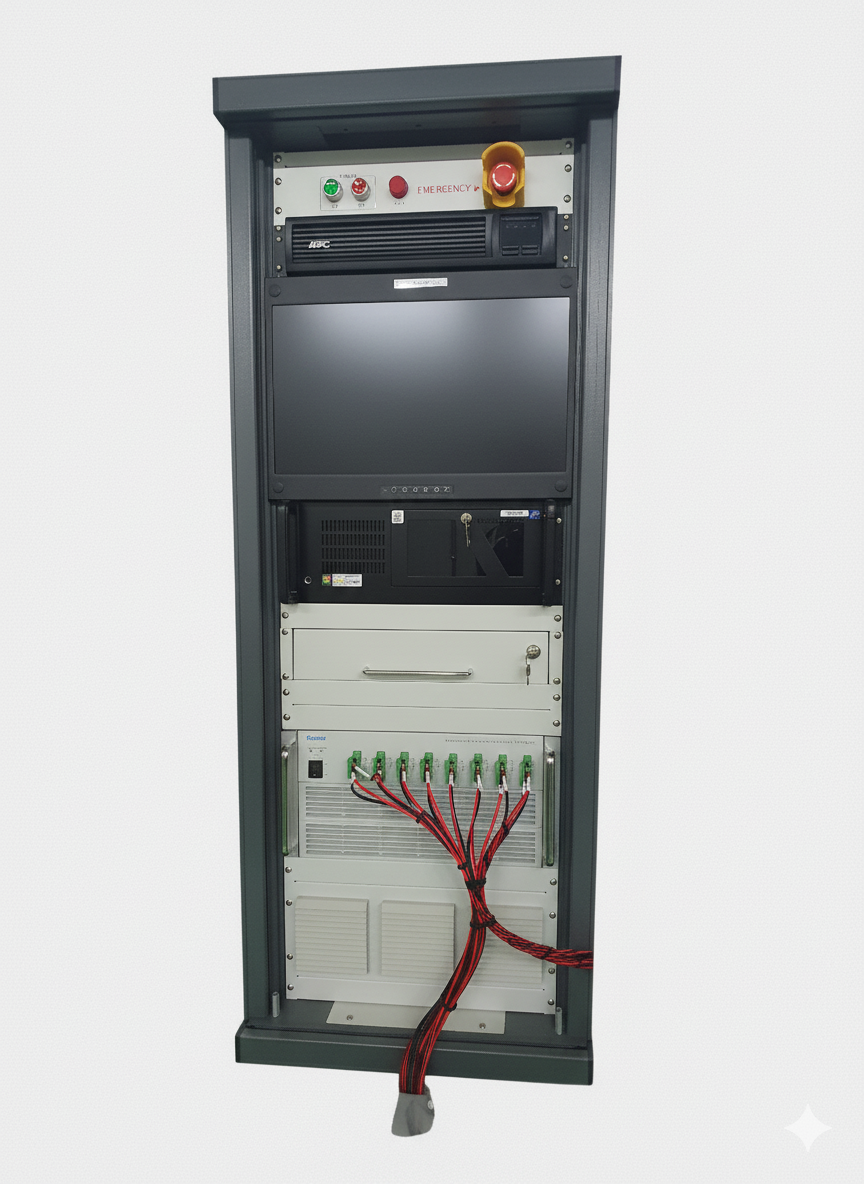

50V30A 8Ch Cycler

Channel	8Ch
Number of Unit	1 Unit
system Capacity	1920 W
Operation Mode	CC/CV/CC-CP/CP/CP-CV/CR
Voltage Source	5 to 5000mV(5V)
Current source and sink(Ch)	0.01 to +- 30 A
Power(Ch)	150 kW
Voltage Resolution	0.1 mV
Current Resolution	1mA
Over Voltage Protection	1020V( < 30us)
Operating Enviroment	Tempperature :0~55C / Humidity:95% or less

Temperature measurement

Sensor Type	T-type Thermocouple
Read Range	-40 C ~ 150 C
Read Accuracy	1 C
Channel	1 Point / Channel
Data Storage Time	1 sec

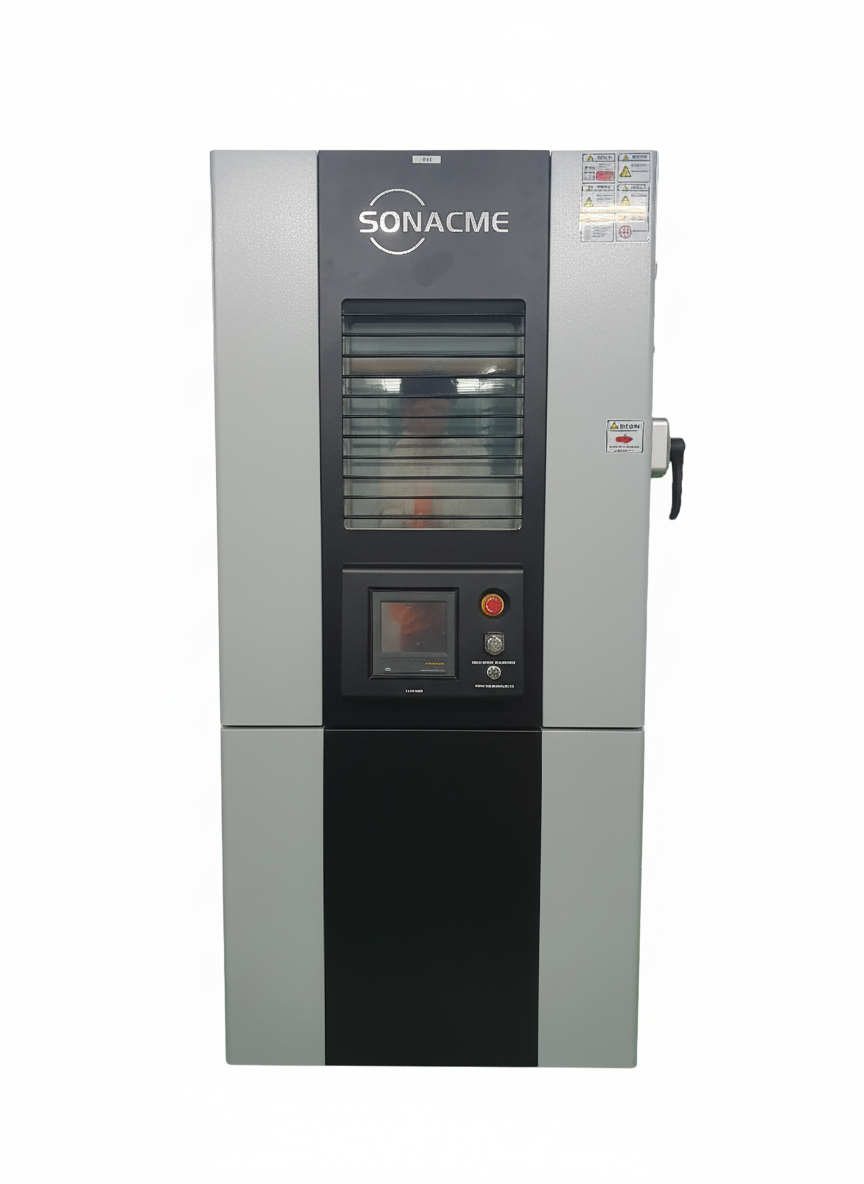

Battry Explosion-proof Chamber

Testing Room(Volume)	180L
Internal dimension	W580 * H750 * D45 mm
External Dimension	W800 * H1800 * D1500 mm
Observation Window Dimension	W320 * H400 mm
Lighting	120w *1
Light Switch	1PCS
Lead Hole Size /Qty	100mm *2
Emergency Stop Switch	1 Pcs next to the Controller
Door Switch	1 Pcs
Warning light	1 Pcs
Control Software	1 Pcs
Temperature Range	-40C ~ + 100C
Temperature Fluctuation	+- 0.3C
Temperature Uniformity	1.5C
Temperature deviation	+- 1.5C,(Based on GB / T5170 - 2016)
Temperature Rate	Heating Rate: 3.0 C / Min
Temperature Rate	Coolingg Rate: 2.0 C / Min
Load Capacity	30Kg
